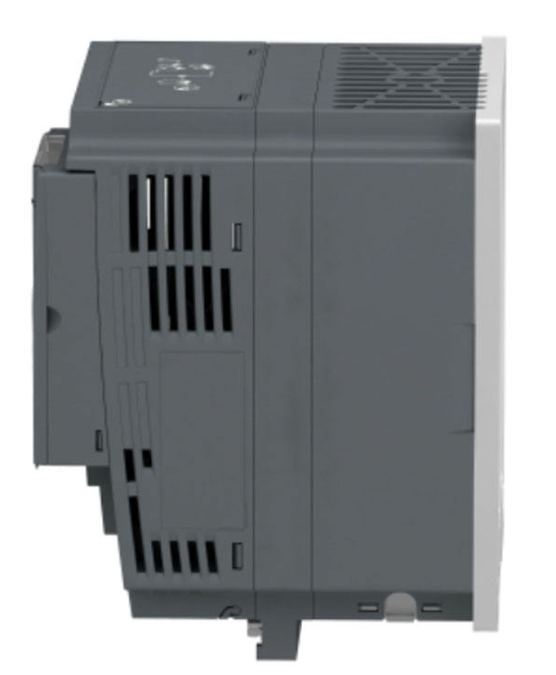

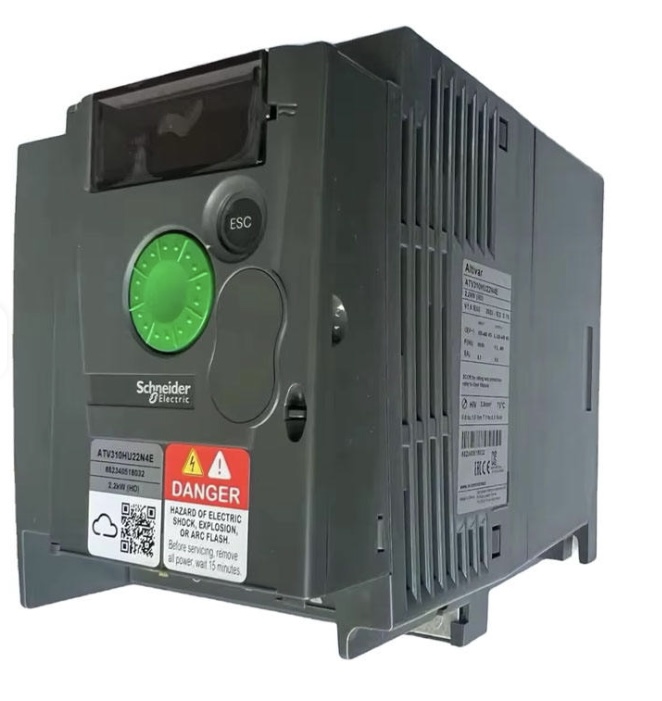

Original Schneider VFD 2.2kW General Purpose Frequency Inverter ATV310HU22N4E

Manufacturer : Scheinder Electric

Part Number : ATV310H075N4E

Range of product : Altivar Easy 310

Product or component type : Variable speed drive

Product specific application : Simple machine

Assembly style : With heat sink

Device short name : ATV310

Network number of phases : Three phase

[Us] rated supply voltage : 380...460 V (- 15...10 %)

Motor power kW : 0.75 kW

Motor power hp : 1 hp

Product destination : Asynchronous motors

Quantity per set : Set of 1

EMC filter : Without EMC filter

Supply frequency : 50/60 Hz +/- 5 %

Communication port protocol : Modbus

Connector type : RJ45 for Modbus on front face

Physical interface : 2-wire RS 485 for Modbus

Transmission frame : RTU for Modbus

Number of addresses : 1…247 for Modbus

Line current : 3.1 A

Apparent power : 2.5 kVA

Prospective line Isc : <== 5 kA

Continuous output current : 2.3 A at 4 kHz

Maximum transient current : 3.5 A for 60 s

Power dissipation in W : 28.83 W at In

Speed drive output frequency : 0.5…400 Hz

Nominal switching frequency : 4 kHz

Switching frequency : 2...12 kHz adjustable

Speed range : 1…20

Transient overtorque : 170…200 % of nominal motor torque depending on drive rating and type of motor

Braking torque : Up to 150 % of nominal motor torque with braking resistor at high inertia | Up to 70 % of nominal motor torque without braking resistor

Asynchronous motor control profile : Energy saving ratio | Quadratic voltage/frequency ratio | Sensorless flux vector control

Motor slip compensation : Preset in factory | Adjustable

Output voltage : 380...460 V three phase

Frequency resolution : Converter A/D, 10 bits for analog input | 0.1 Hz for display unit

Time constant : 20 ms, tolerance +/- 1 ms for reference change

Operating position : Vertical +/- 10 degree

Height : 130 mm

Width : 72 mm

Depth : 143 mm

Product weight : 0.7 kg

Shipping weight : 2 Kg
