New For BURKERT S030DN40PP Turbine Flow Meter Sewage Liquid Waterway Pipe Flow Meter
New For BURKERT S030DN40PP Turbine Flow Meter Sewage Liquid Waterway Pipe Flow Meter
Brand:BURKERT
Origin : China
Model : S030DN40PP
Series:S030
Availability: In stock

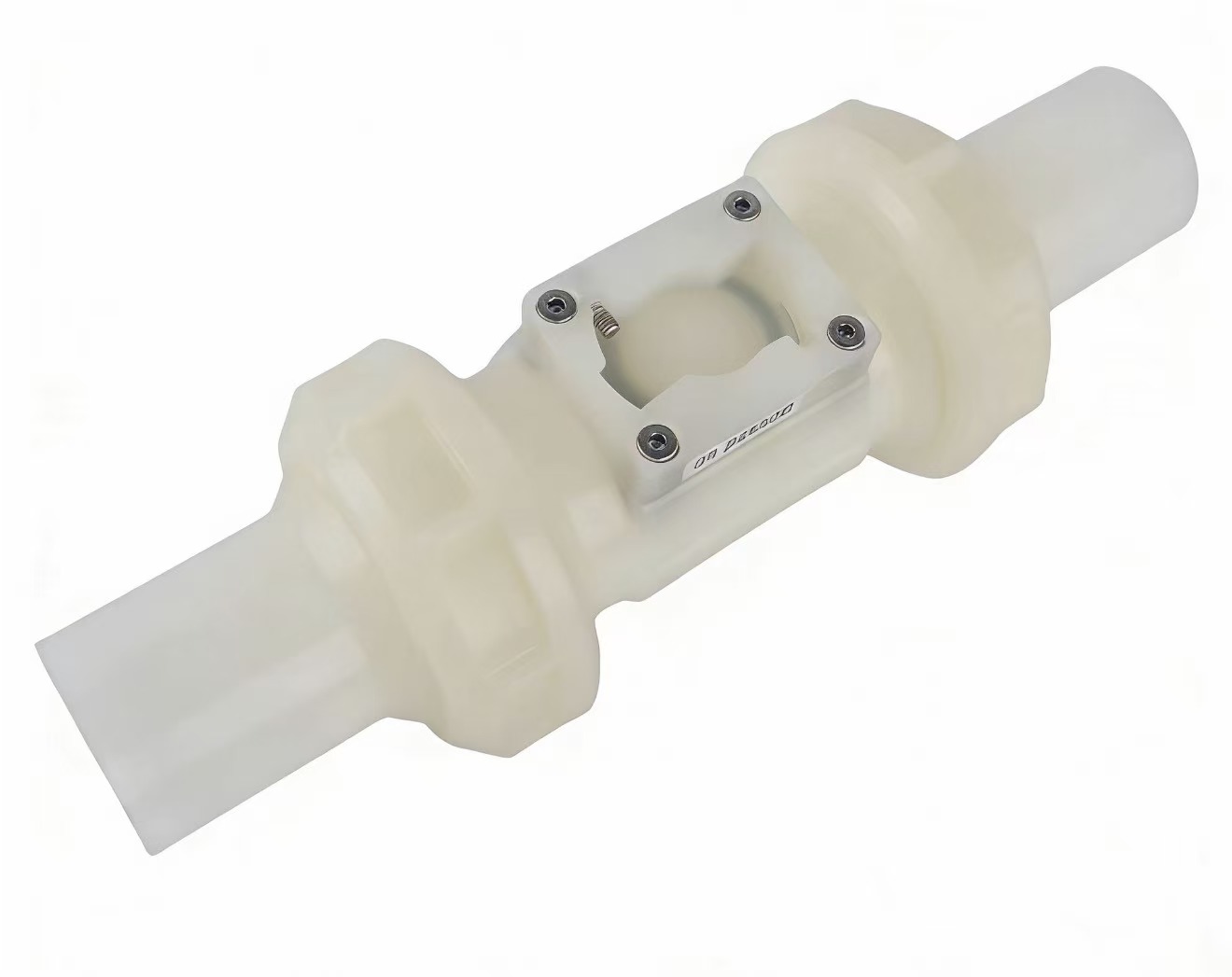

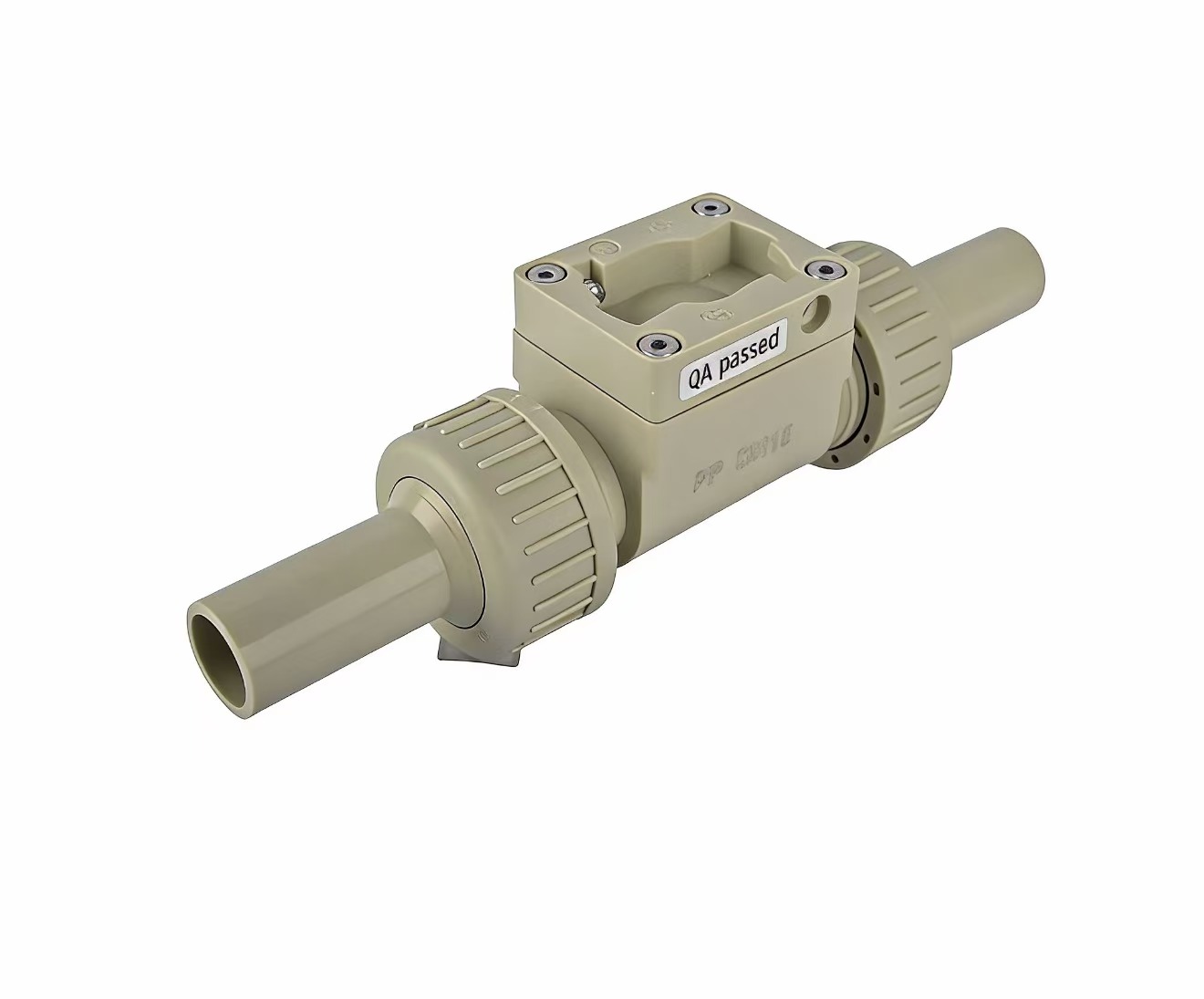

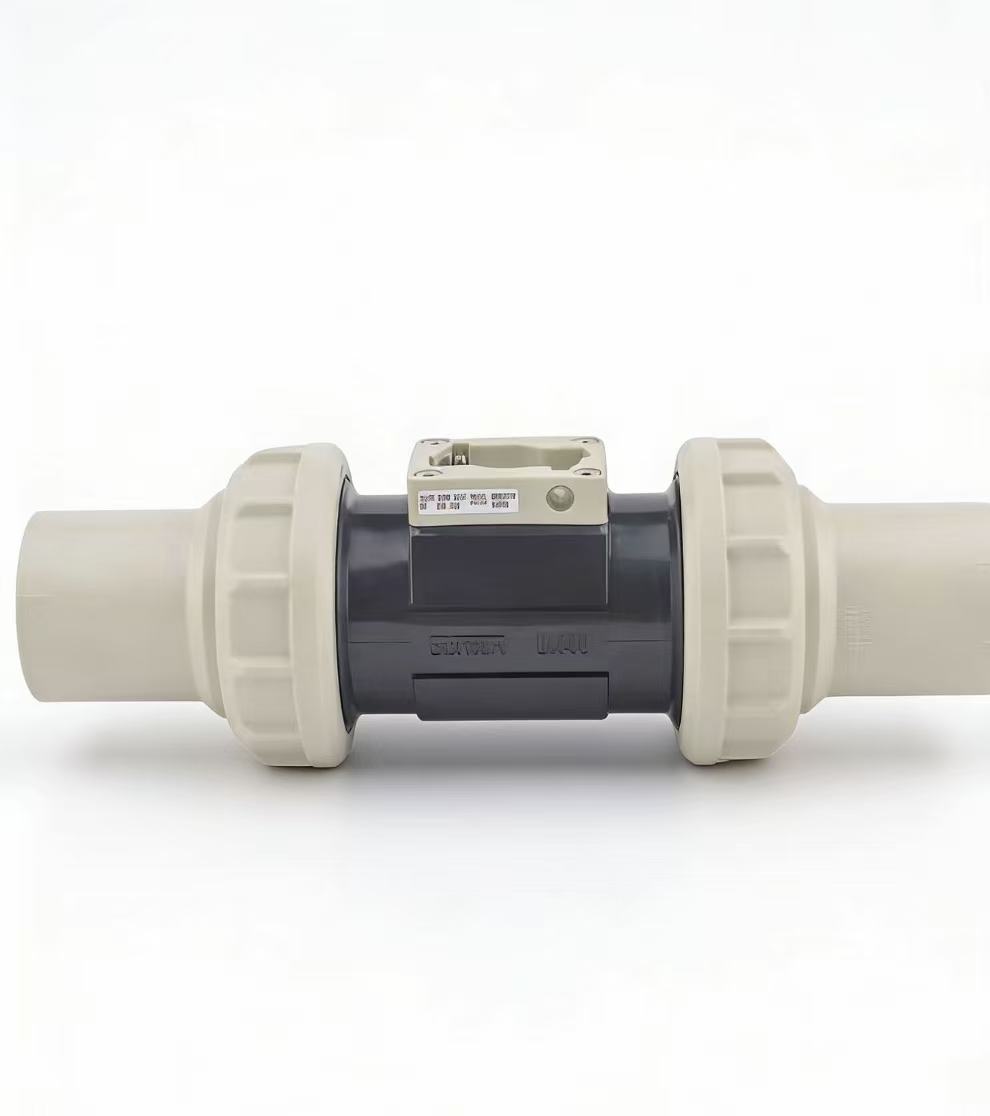

S030 series PP material turbine sensor
Brand Model: Burkert S030DN40PP (Baode S030 Series)
• Material: Body made of PP (Polypropylene), impeller made of PVDF, optional sealing with FKM/EPDM, bearing made of ceramic (Al₂O₃)
• Specifications: Pipe diameter DN40 (1½"), pressure PN10, temperature 0–80°C, flow rate 0.3–10 m/s, suitable for neutral/weakly corrosive particle-free liquids
• Principle: The liquid drives the impeller to rotate, generating pulses from the permanent magnet. These pulses are non-contact detected by the transmitter, with the frequency being directly proportional to the flow rate
• Connection: Quick-Release Quarter-Turn, allowing transmitter installation and removal without shutdown
Core strengths
1. Maintenance-free operation: Fast-installation design allows for transmitter installation and removal without flow interruption, enhancing system availability
2. Reliable and Durable: The PP+PVDF+ceramic bearing combination offers corrosion resistance and low wear, making it suitable for chemical and water treatment applications
3 Flexible Adaptation: Compatible with multiple Burkert transmitters, supporting functions such as display, monitoring, and batch control
4. Precision and Stability: Repeatability ≤ ±0.4% of reading, adjustable via Teach-in or standard K coefficient calibration
• Material: Body made of PP (Polypropylene), impeller made of PVDF, optional sealing with FKM/EPDM, bearing made of ceramic (Al₂O₃)
• Specifications: Pipe diameter DN40 (1½"), pressure PN10, temperature 0–80°C, flow rate 0.3–10 m/s, suitable for neutral/weakly corrosive particle-free liquids
• Principle: The liquid drives the impeller to rotate, generating pulses from the permanent magnet. These pulses are non-contact detected by the transmitter, with the frequency being directly proportional to the flow rate
• Connection: Quick-Release Quarter-Turn, allowing transmitter installation and removal without shutdown
Core strengths
1. Maintenance-free operation: Fast-installation design allows for transmitter installation and removal without flow interruption, enhancing system availability
2. Reliable and Durable: The PP+PVDF+ceramic bearing combination offers corrosion resistance and low wear, making it suitable for chemical and water treatment applications
3 Flexible Adaptation: Compatible with multiple Burkert transmitters, supporting functions such as display, monitoring, and batch control
4. Precision and Stability: Repeatability ≤ ±0.4% of reading, adjustable via Teach-in or standard K coefficient calibration
