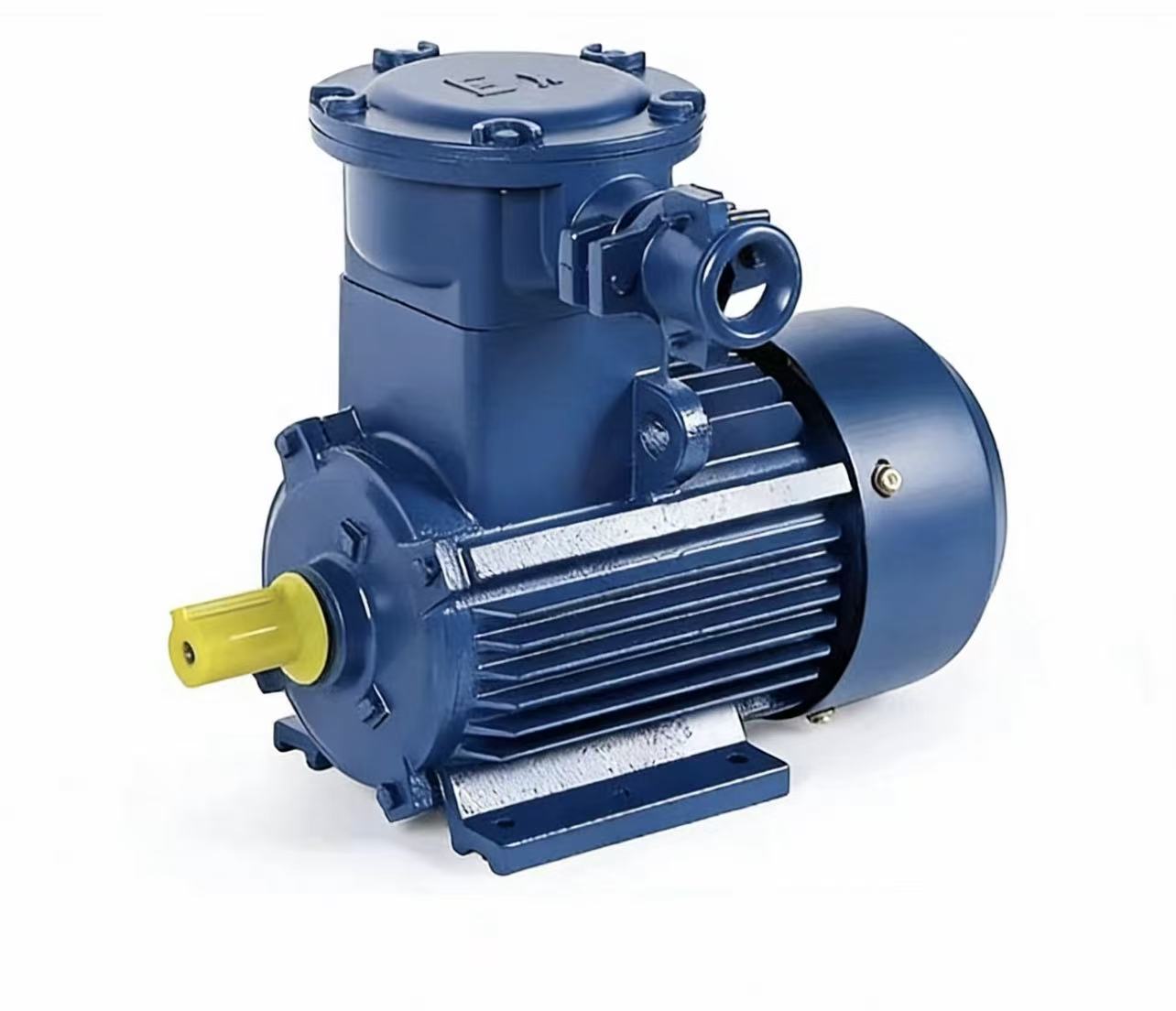

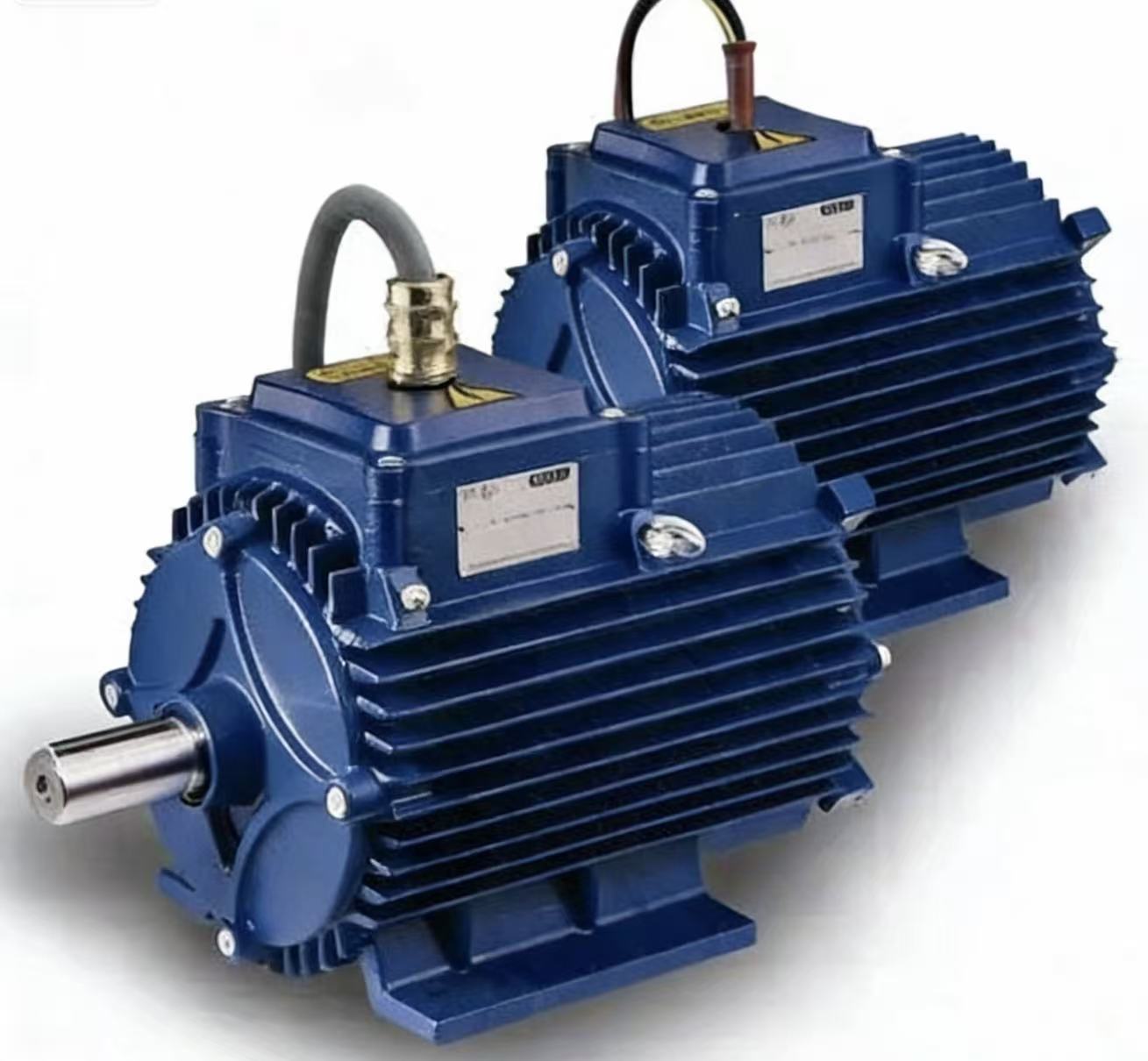

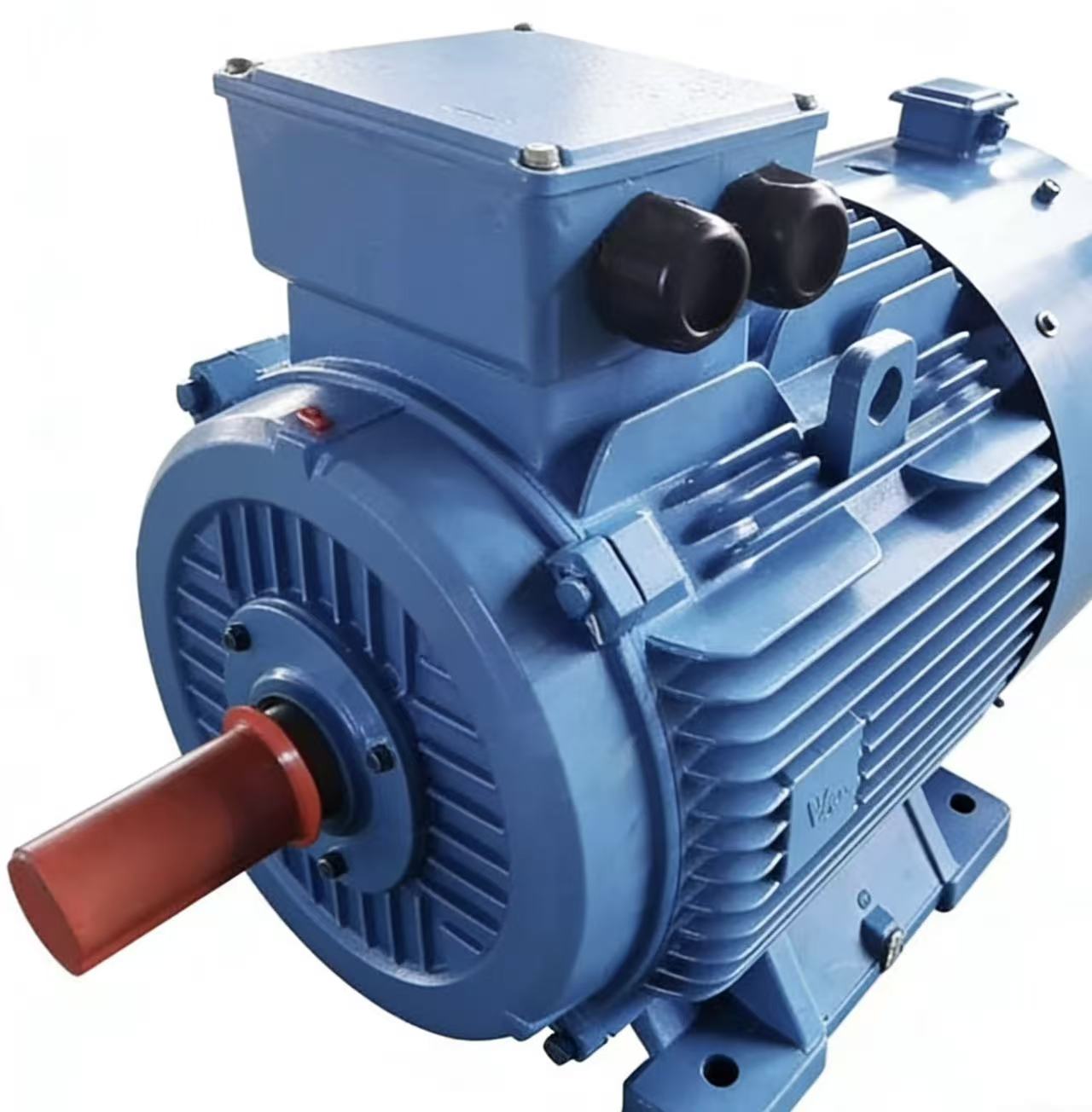

Original Euromotori three-phase asynchronous motor MAK56-160 made in Italy

Three-phase and single-phase asynchronous motors series MAK 56, MAK 63, MAK 71, MAK 80,
MAK 90, MAK 100, MAK 112, MAK 132 and MAK 160 supplied by mains or by frequency converter.
The motors are all made of grey cast iron with motor enclosure directly communicating with the
terminal box.
The criteria for identification of types of the three-phase and single-phase asynchronous motors
series MAK 56, MAK 63, MAK 71, MAK 80, MAK 90, MAK 100, MAK 112, MAK 132 and MAK 160
are defined as follows:
- motor type MAK* 56-63-71-80-90-100-112-132-160 from 2 to 8 poles: three-phase motor, centre
height 56-63-71-80-90-100-112-132-160 at 2, 4, 6, 8 poles.
- motor type MAK-M 56-63-71-80-90-100-112-132-160 from 2 to 6 poles : single-phase motor,
centre height 56-63-71-80-90-100-112-132-160 at 2, 4, 6, poles.
* WV in case of motors without fan.
The complete identification of all type of three-phase and single-phase asynchronous motors is
detailed in the manufacturer documentation.
The motors can be equipped with auxiliary devices (heaters, thermal detectors, etc.).
Electrical characteristics
Mains supply:
- Maximum voltage: 1000 V (three-phase)
 250 V (single-phase)
- Maximum rated power: 0,25 ÷ 37 kW
- Rated frequency: 50 / 60 Hz
- Insulation class: F (t. F for T3 and T 155 °C)
 (with t. B for T6, T5, T4 and T 85 °C, T 1 00 °C, T125 °C)
- Duty: S1 ÷ S8
- Rated speed: 250 ÷ 3600 rpm
- Degree of protection: IP 66 (IEC 60034-5 and IEC 60529)
- Ambient temperature range: -20 ÷ +80 °C (+40 °C; +45 °C; …..and +80 °C)
